Electrical or hydraulic drive
Provides a cleaner working environment – reduces airborne sawdust
Reduces the risk of overheating from the firewood processor
Collected sawdust can be used in other applications (i.e bedding, mulch, etc.)
| Model | 240930 |
| Drive | Hydraulic |
| Required oil flow | 15L/min |
| RPM | 2800r/min |
| Hose, Pressure side | Φ 100 mm, 2m |
| Hose, Suction side | Φ 133 mm, 3m |
| Wheel | 2pcs |
| Weight | 23kg |
| Model | 240930E |
| Electric motor, | 1.1 kW, 3-phase |
| Voltage | 400V (Optional 230V) |
| Hose, Pressure side | Φ 100 mm, 2m |
| Hose, Suction | Φ 133 mm, 3m |
| Weight | 20kg |

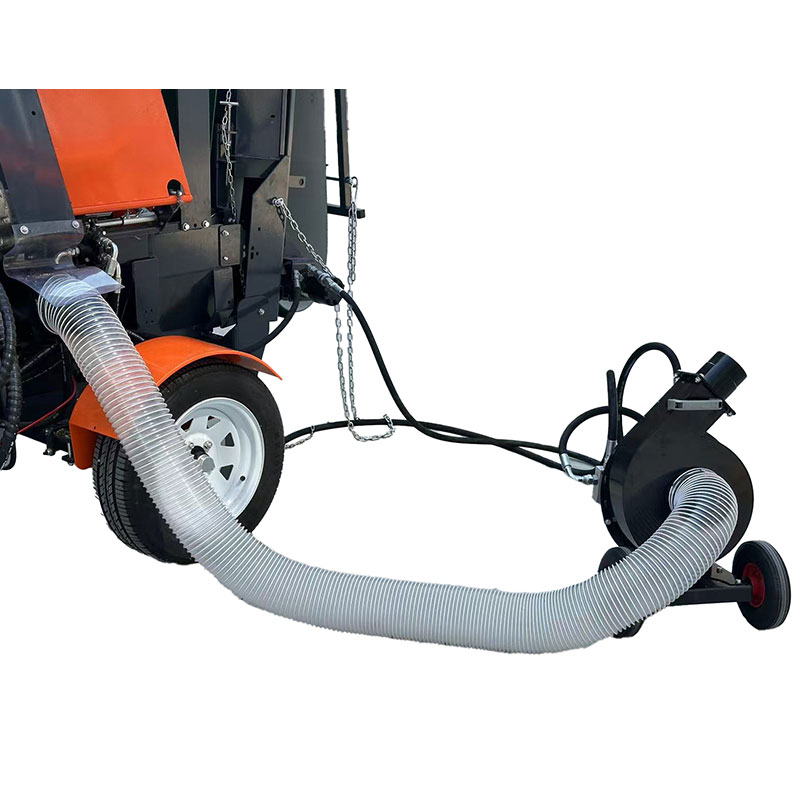

The 240930 can be fitted to the RM7 processor as an optional extra, at time of purchase or at a later date. It can also be fitted to other RIMA processors. It helps maintain a cleaner and safer working environment, by reducing the airborne dust and dust accumulation near the oil tank and around the tractor. The extractor creates a vacuum, pulling the sawdust away from the work area, via it’s 3m long hose.
Electrical or hydraulic drive

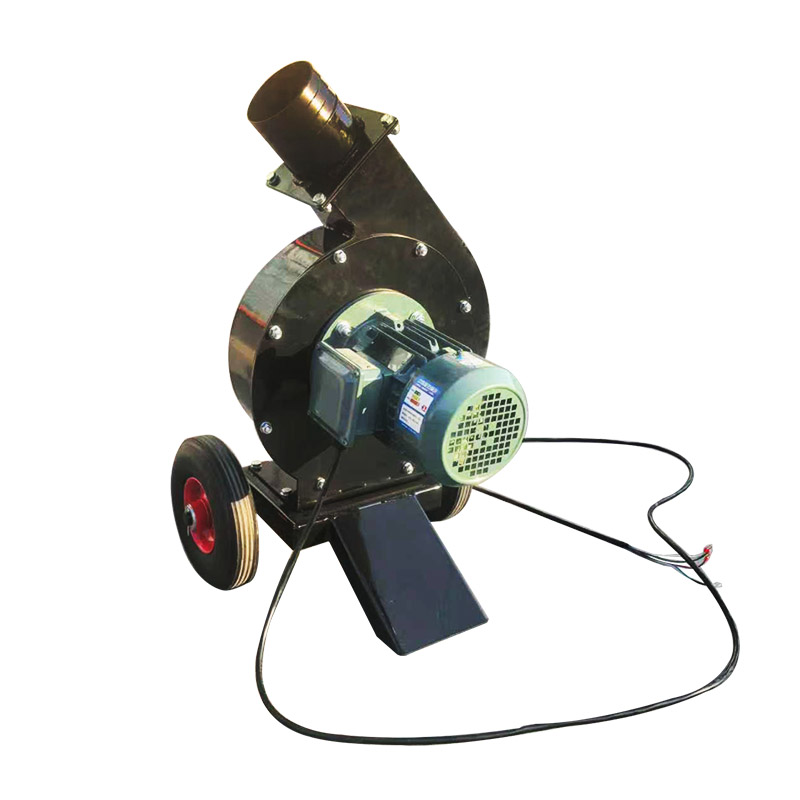

The 240930E sawdust extractor can be delivered with either electric (*) or hydraulic drive. The electric version is connected via the start on a electric RM7 processor, or alternatively connected to a 3-phase contact on other machines. The 240930E is delivered for 230V, but can also be delivered with a 400V connection.

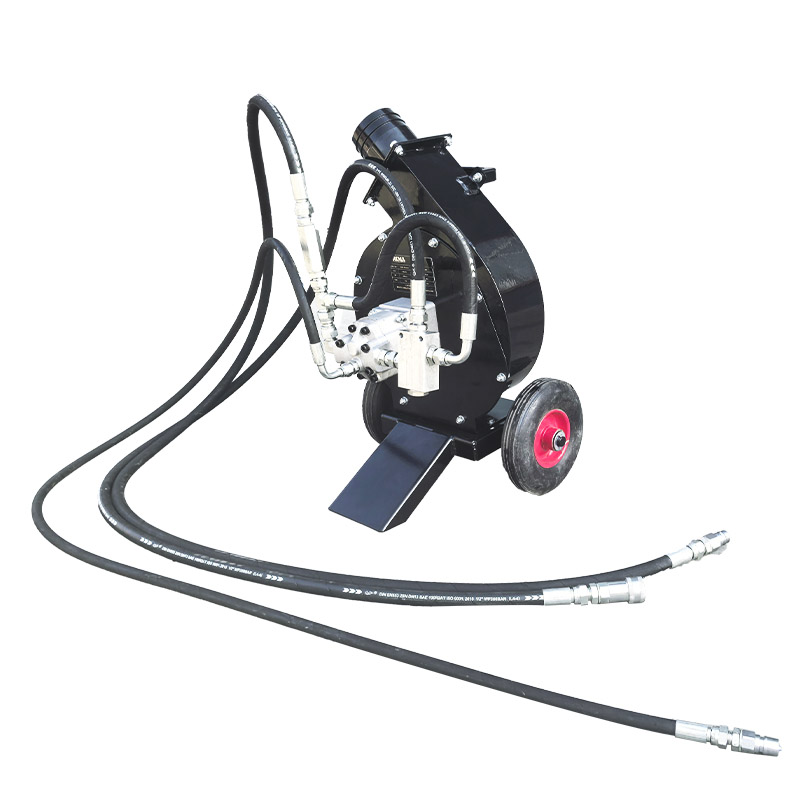

The hydraulic model is powered by the tractor’s hydraulics (minimum 15 L/min.).
The 240930 is delivered with a three meters hose (Ø 133 mm) on the suction side. The pressure side is equipped with a Ø 100 mm muff for mounting a two meters hose or other solutions better suited the operator.
