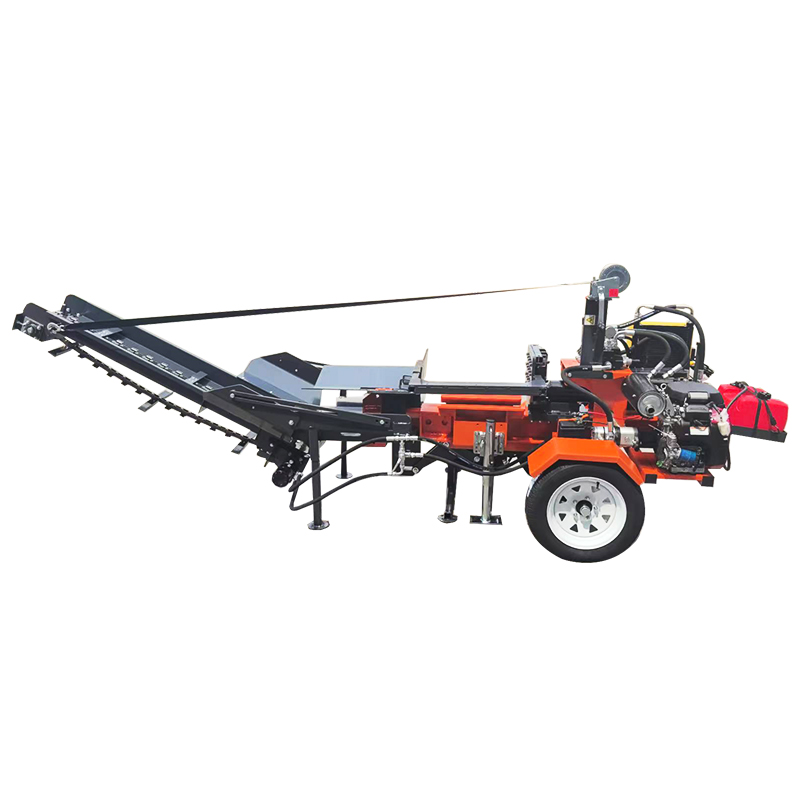

LS37PRO-C(NA)

The LS37PRO-C log splitter series is a heavy-duty, high-efficiency wood processing solution engineered for professional users who demand superior performance and durability. With an impressive 37-ton splitting force and a splitting length capacity of 610mm, the LS37PRO-C is capable of handling large and dense hardwood logs with ease. This series is available in multiple configurations, including models powered by either a 14HP Kohler E-start engine or a 24HP Lifan E-start engine, ensuring powerful, reliable operation in any environment. Each unit features a hydraulic 4-way box wedge and a hydraulic log lifter with a maximum lifting capacity of 200kg, reducing manual labor and increasing overall productivity. Equipped with a belt conveyor (3.2m with winch) for efficient material handling, the LS37PRO-C streamlines the wood-splitting process. The 3-stage hydraulic pump (up to 97L/min) and 5”×24” hydraulic cylinder deliver consistent, rapid splitting performance with cycle times as short as 5.5 seconds. A hydraulic oil cooler maintains optimal system temperature for extended, continuous operation. Built with a 14” high-speed torsion axle, durable steel construction, and a 50L hydraulic tank, the LS37PRO-C combines stability, mobility, and endurance. With its professional-grade design, this log splitter is ideal for commercial firewood production, forestry operations, and industrial wood processing applications.

1) LS37PRO Fastest professional log splitter

2) 37ton splitting force

3) Cycle times 5.5 seconds

4) Max. cutting length 610mm

5) Hydraulic wedge lift

6) 200kg Hydraulic log lift

7) A floating auto-retract arm comes with 4 Box Wedge

8) 14” wheel with torsion axle

9) 1.9m chain firewood conveyor

Model LS37PRO-C/15-NA LS37PRO-C/24-NA LS37PRO-C/24-NA
Splitting force 37ton 37ton 37ton
Splitting length 610mm 610mm 610mm
Power 14HP KOHLER E-start 24HP LIFAN E-start GX630 HONDA E-start
Log lifting capacity Hydraulic, Max. 200kg Hydraulic, Max. 200kg Hydraulic, Max. 200kg
Box wedge Hydraulic, 4-way Hydraulic, 4-way Hydraulic, 4-way
Hydraulic wedge height 160mm 160mm 160mm
Hydraulic pump Capacity 68L/min(18Gpm) 97L/min(25.6GPM) 97L/min(25.6GPM)
Hydraulic tank 50L (13.2Gal) 50L (13.2Gal) 50L (13.2Gal)
Hydraulic pump 3-stage 3-stage 3-stage
Cycle time 10s 5.5s 5.5s
Hydraulic oil cooler Yes Yes Yes
Hydraulic cylinder 5”x24” 5”x24” 5”x24”
Belt conveyor 3.2m with winch 3.2m with winch 3.2m with winch
Wheel 14” high speed &torsion axle 14” high speed &torsion axle 14” high speed &torsion axle
Packing size 2120x990x870mm

1930x630x320mm

2120x990x870mm

1930x630x320mm

2120x990x870mm

1930x630x320mm

Weight 962/1022kg 972/1032kg 972/1032kg
40” HC 36pcs 36pcs 36pcs



Spare parts
LS37PRO



























Name
4 Box wedge
6 Box wedge
6-way wedge
4-way wedge
2-way wedge
3-Valve/14
3-Valve/24
Pump/14
Pump/24
Main cylinder
Log lift cylinder
Wedge Lift Cylinder
Pressure gage
NM400 blade









4 Box wedge
6 Box wedge
6-way wedge
4-way wedge
2-way wedge
