Log Splitter

CONTACT US
FLS40
FLS40
The FLS-40 Kinetic Log Splitter is a high-performance, mechanically driven wood splitting machine designed for fast, efficient, and heavy-duty log processing. Operating in a horizontal configuration, it is engineered to handle demanding workloads in forestry, agriculture, firewood production, and commercial wood processing environments. Powered by a 6.5HP gasoline engine (Loncin, Lifan, or Ducar), the FLS-40 delivers an impressive maximum splitting force of 40 tons, making it suitable for splitting large and tough logs with ease. This model supports logs up to 610 mm in length and 750 mm in diameter, providing excellent versatility for various wood sizes. The advanced kinetic splitting system, featuring dual 40 kg flywheels rotating at up to 360 rpm, enables an ultra-fast 3-second stroke time, significantly increasing productivity compared to traditional hydraulic splitters. A reinforced 125 × 125 mm “H” frame ensures exceptional structural strength and long-term durability under continuous operation. Designed for mobility and convenience, the splitter is equipped with 16×6.5-8 tires and a 2-inch ball coupler, allowing easy towing between job sites. With a solid build, efficient mechanical transmission, and high-speed operation, the FLS-40 is an ideal solution for users seeking powerful performance, fast cycle times, and reliable log splitting efficiency.
FLS40-Crane
FLS40-Crane
The FLS-40 Kinetic Log Splitter (Lift Version) is an upgraded, heavy-duty firewood processing solution developed on the proven FLS-40 platform. In addition to the high-speed kinetic splitting performance, this enhanced model is equipped with an integrated log lifting system, designed to significantly reduce manual handling and improve operator safety and efficiency. Powered by a reliable 6.5HP gasoline engine, the machine delivers an impressive 40-ton maximum splitting force and features a fast 3-second stroke time, making it ideal for high-output firewood production. The splitter operates in a horizontal configuration and supports large logs, while the reinforced steel frame ensures long-term durability under demanding working conditions. The newly added lifting arm allows heavy logs to be lifted from ground level directly onto the splitting table using a mechanical hoist and gripping clamp. This upgrade makes the FLS-40 Lift Version particularly suitable for processing oversized or heavy logs with minimal physical effort. With towing capability, solid construction, and enhanced ergonomics, this model is designed for professional users who demand power, speed, and improved handling efficiency.

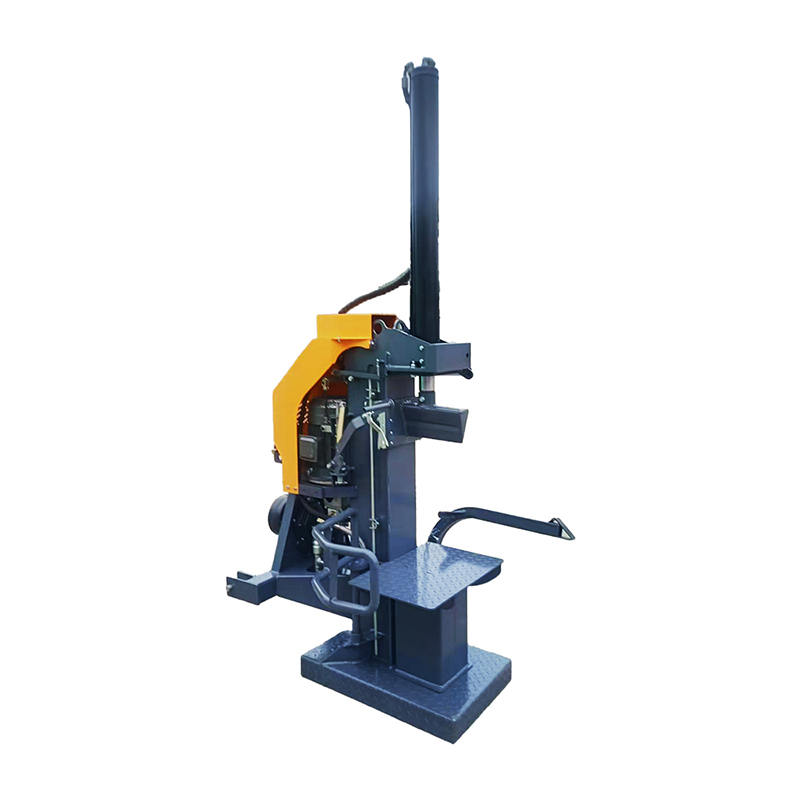

Log Splitter V18K-V18E-V18EK
V18K-V18E-V18EK
The V18 log splitter series is a versatile, heavy-duty wood splitter designed for both professional and agricultural applications. Delivering an 18-ton splitting force, this model efficiently handles a wide range of wood types and sizes, making it ideal for firewood production and forestry operations. Available in three configurations — V18K (PTO-driven), V18E (electric motor), and V18EK (dual PTO/electric motor) — the series offers flexibility to suit different working environments. The V18K model is powered by a 27kW/37HP tractor PTO system, while the V18E features a 5.5kW, 400V 50Hz electric motor, providing powerful and consistent performance in all setups. The splitter features an adjustable splitting height of 550/1050mm and achieves fast splitting cycles of 14s/26s, ensuring efficient operation for various log sizes. Its 16MPa working pressure and 40L hydraulic tank deliver stable hydraulic performance, while the 40–56L/min oil flow supports smooth and continuous power output. Designed for operator comfort, the 600mm wood table height provides an ergonomic working position. With a sturdy 3-point CAT 1&2 hitch and compact packing size of 2000×770×1200mm, the V18 series combines portability, strength, and ease of use. The V18 log splitter is a reliable, high-efficiency solution for professionals seeking power, versatility, and long-term durability in wood-splitting operations.
Log Splitter Super20
Super20
The Super20 Log Splitter is an industrial grade tool designed to make log splitting easy and efficient. With its fast 4 second cycle time(14HP engine)and 3 second cycle time(GX630 engine), torsion axle for easy transportation, and ergonomic working height, this log splitter is perfect for commercial use. The unique vertical design and foot pedal control (optional two hands operation for EU market) allow for unmatched precision and the standard swing conveyor and hydraulic log lift make your work easier. Don't miss out on the power and efficiency of the Super20 Log Splitter!

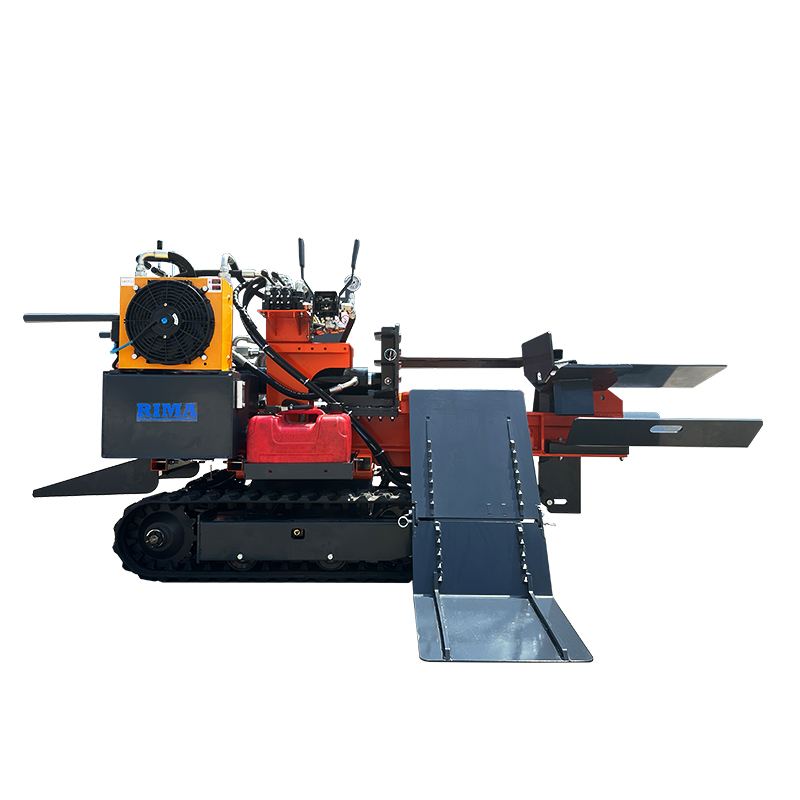

Log Splitter LS37PRO-T
LS37PRO-T
The LS37PRO-T log splitter series is a high-performance, professional-grade machine engineered for demanding wood-splitting tasks. Delivering an impressive 37-ton splitting force and accommodating logs up to 610mm in length, it provides outstanding power and efficiency for heavy-duty wood processing operations. Available in three configurations — LS37PRO/15, LS37PRO/24-EU, and LS37PRO/24-NA — this series is powered by either a 14HP Kohler E-start engine or a 24HP Lifan E-start engine, ensuring strong and reliable performance for both commercial and industrial applications. Each model features a hydraulic 4-way box wedge and a hydraulic log lifter capable of handling logs up to 200kg, significantly reducing manual handling and increasing productivity. The 3-stage hydraulic pump, with capacities up to 111.6L/min (29.48 GPM), delivers consistent hydraulic power, achieving rapid cycle times as short as 5.5 seconds. The 5”×24” hydraulic cylinder and hydraulic oil cooler ensure smooth, efficient, and stable operation even during long working sessions. Built with a durable track system for added stability, and a robust structure weighing up to 1010kg, the LS37PRO-T is designed to perform in tough environments. With its powerful performance, precision engineering, and operator-friendly design, the LS37PRO-T series is the ultimate solution for professional firewood production and large-scale wood-splitting operations.
